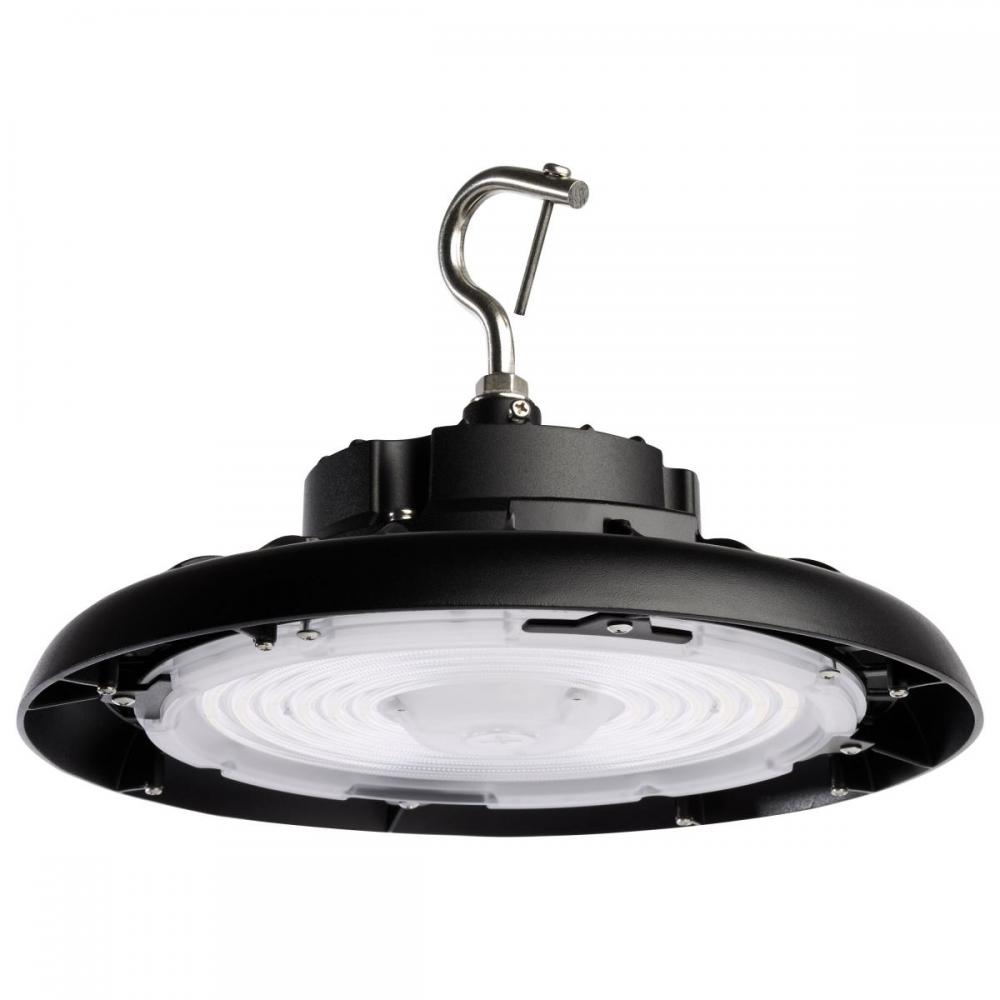

100 Watt UFO LED High Bay; 4000K; 14000 Lumens; 120-277 Volt; Black Finish (65/781R2) by Nuvo
100 Watt UFO LED High Bay; 4000K; 14000 Lumens; 120-277 Volt; Black Finish
Product Specification
Item #
65/781R2
Dimensions
Height: 8.11"
Width: 11.02"
Additional product details
Vendor Item #
65/781R2
Category
Lamps
Subcategory
LED Lamps
Option
LED , Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Hi-Bay
Sub Category
UFO
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Cool White
Diameter
11.02
Dimmable
Yes-Dimmable
Each Height
4.92
Each Length
11.81
Each Width
11.81
Lumens
14000L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
72
Amps
0.833-0.361A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
0.3971
Each Quantity
1
Efficacy
140.00 LPW
FCC Compliant
Yes
Feature 1
Integrated Sensor Port
Feature 2
IP65
Feature 3
6KV Surge Protection
Feature 4
6 Foot Whip
Feature 5
90 degree Beam Angle
Feature 6
50,000 Hours
Feature 7
5 Year Warranty
Finish Family
Black
Has Emergency Battery
No
HID Equiv
250W
Impact Rating (IK)
IK08
Incandescent Equivalent
600W
Includes
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor
Indoor
Installation Notes
Mounting Height: Up to 20 feet
IP Rating
IP65
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-781R2 100-watt, 4000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protecti
Material
Die-cast Aluminum
Mounting Procedure
Pendant Hanging Surface
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Kraft Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
R9 Value
12
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 100-watt, 4000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire g
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
LED UFO HIGHBAY 100W/4000K
Temperature (CCT)
4000K
Title 20 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
4.53
Manufactured By
Nuvo
Finish
