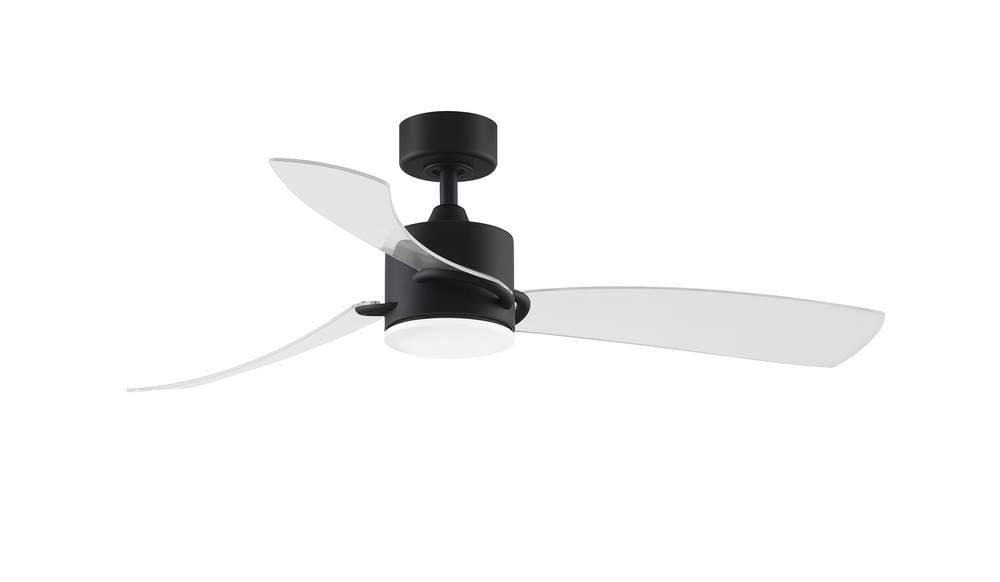

SculptAire - 52 inch - BL with LED Light
Image may not reflect selected features
/vendors/90/large/FP8511BL_1.jpg
additional image
SculptAire - 52 inch - BL with LED Light (FP8511BL) by Fanimation
Whether you choose a Black, Chrome, Brushed Satin Brass, or Matte White finish, the clear blades on SculptAire will keep you looking and feeling cool. This 52 inch fan has a 3 speed AC motor and comes with an 18 watt LED light kit and cover. *Brushed Satin Brass and Chrome finishes are Dry Rated for indoor use; while the Black and Matte White finishes are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
4663 Cubic Feet per Minute
Electricity Rate
58 Watts (excluded lights)
Airflow Efficiency
80 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
FP8511BL
Dimensions
Height: 13.88"
Width: 52.00"
Length: 52.00"
Additional product details
Vendor Item #
FP8511BL
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Transitional
Option
Damp Rated , LED
Voltage
10-99
Glass Finish or Style
Frosted , Opal
Lumens
1101-1600
Number of Blades
3 Blades
Location Rating
Damp Rated
Wattage
18w
Category
Fan-Uni
Finish
Black
Option
Damp
Family
Sculptaire
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features , 4663 CFM on High , Limited Lifetime Warranty , Set of (3) 52 inch clear blades and 18 watt LED light kit with cover and bulb included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
4663
Air Flow Efficiency
80
Amperage
0.48
Blade Finish
Clear
Blade Pitch
13
Bulb Type
18 Watt LED Module
Canopy
5.75 Dia x 2.57 H
Diameter
7.48
Down Rod Included
4.5
Electricity Used
58
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1500
Material
Composite
Motor Fan Speed
3
Motor RPM
130
Motor Size
153 x 20
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10
Ship Carton Length
25.98
Ship Carton Width
11.93
Ship Weight
21.61
Sold By
Each
Warranty
Limited Lifetime
Weight
18.11
Airflow Efficiency Low
147
Airflow Efficiency Medium
105
Avg Airflow Efficiency
101
Avg CFM Energy
3868
Avg Energy Use Watts
38
Avg Estimated Yearly Energy Cost
11
Avg Estimated Yearly Energy Cost on HIGH
16
Blade Finish Method
Injected
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
5.75 Dia
Canopy Height
2.57 H
Cap Included
Yes
Carton Cubic Feet
1.79
Cartons Per Unit
1
Case Height
10
Case Length
25.98
Case Quantity
1
Case Weight Pounds
21.61
Case Width
11.93
CEC Uploaded
Yes
Ceiling To Blade Edge
11.83
Ceiling To Bottom
13.88
CFM Low
1980
CFM Medium
3276
Compatible Accessories
CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCB1-52
Compatible Controls
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls
CWRL4LA, CWRL4WH, WC2WH, WR501WH
Country of Origin
China
CRI
90
Current Draw High
0.48
Current Draw Low
0.23
Current Draw Medium
0.35
Damp Rated
Yes
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
7.48
Included Control
TR500
Included Control Type
Handheld
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
58
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
130
RPM Low (II)
56
RPM Medium (IV)
93
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 Hz
Watts Low
14
Watts Medium
31
Watts Per Bulb
18
Manufactured By
Fanimation


Other Details:
  • 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
  • 4663 Cfm On High
  • Limited Lifetime Warranty
  • Set Of (3) 52 Inch Clear Blades And 18 Watt Led Light Kit With Cover And Bulb Included
  • Tr500 Handheld Remote With 23a Battery Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
